T16 s/n 11644

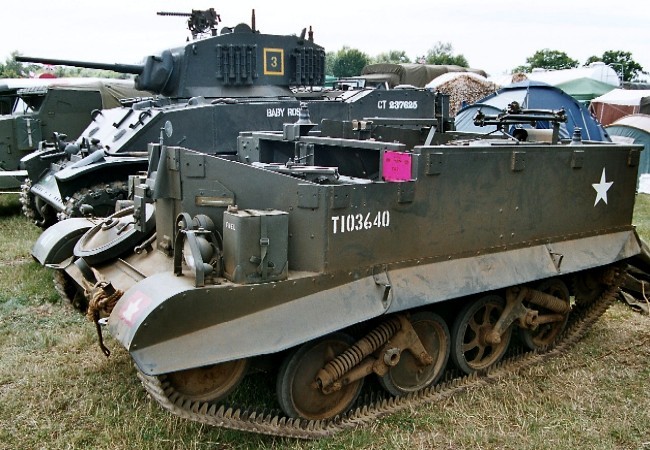

T16 s/n 11644 T103640, pictured at Beltring 2003

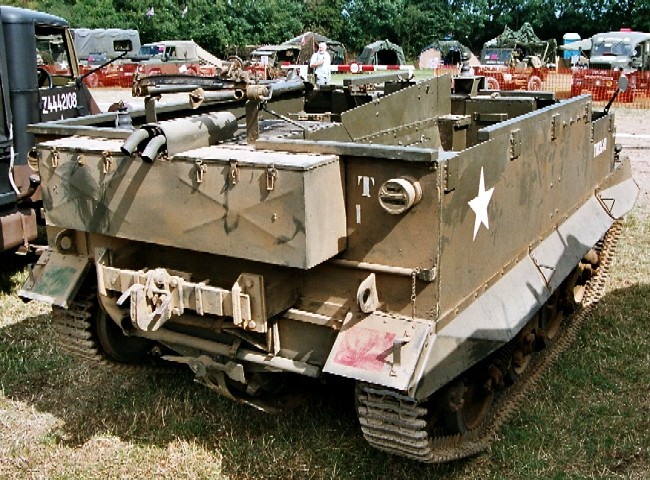

Right-hand rear view.

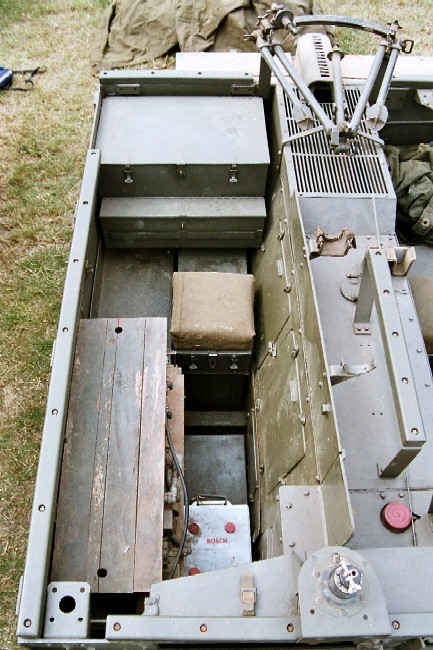

Right-hand crew compartment, looking to the rear.

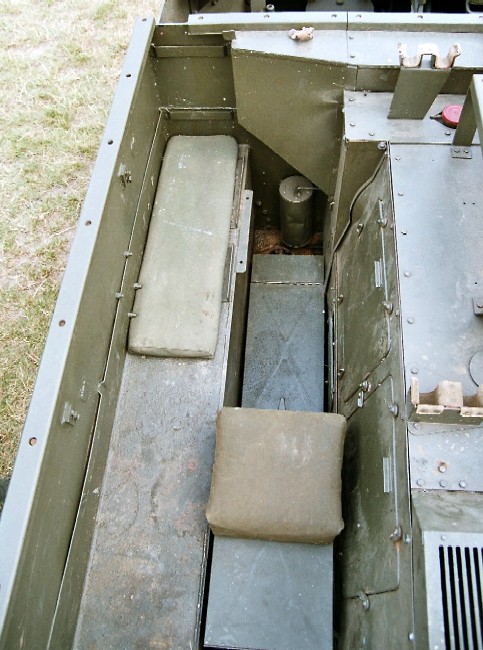

Left-hand crew compartment, looking to the front.

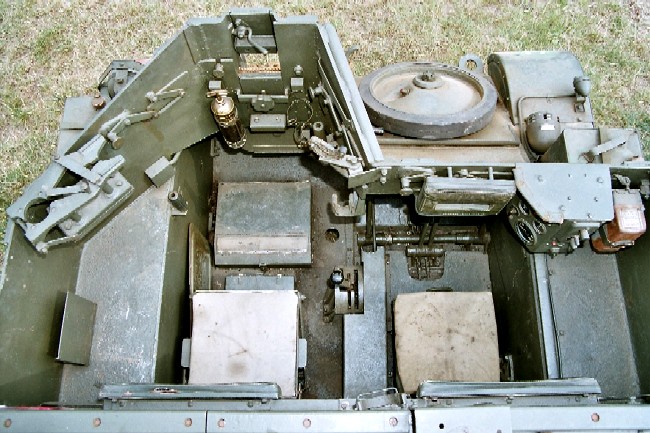

Top view of driver's compartment.

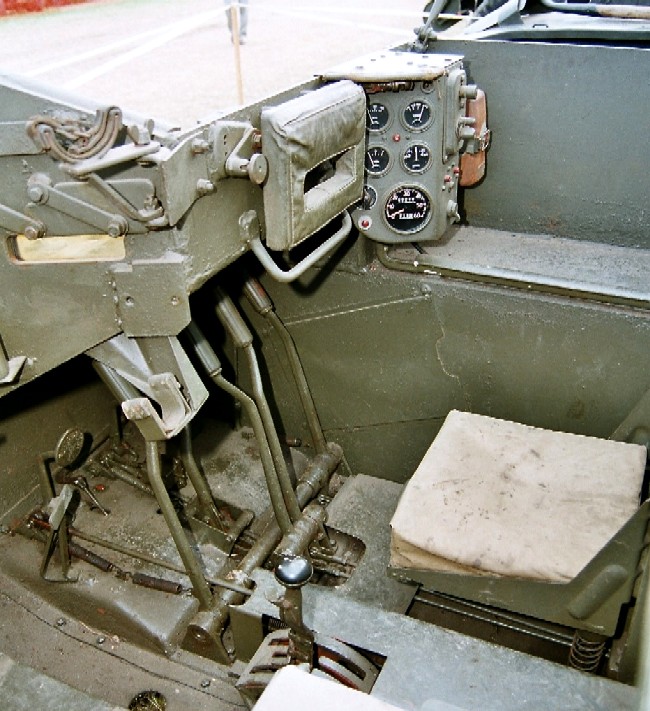

Driver's seat and controls. Note the padded visor with the dash panel to the right.


Gunner's station.

Driver's and gunner's seats, cooling air intake in between them. Notice the oil coolers fitted in front of the radiator.

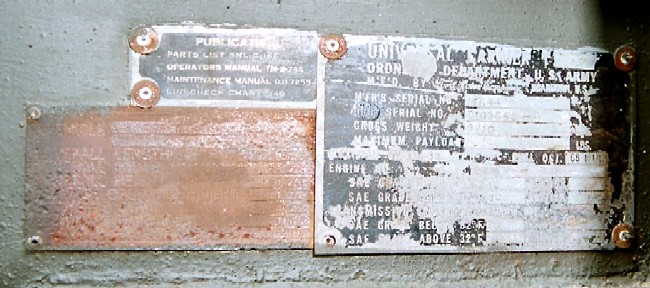

Data plates.

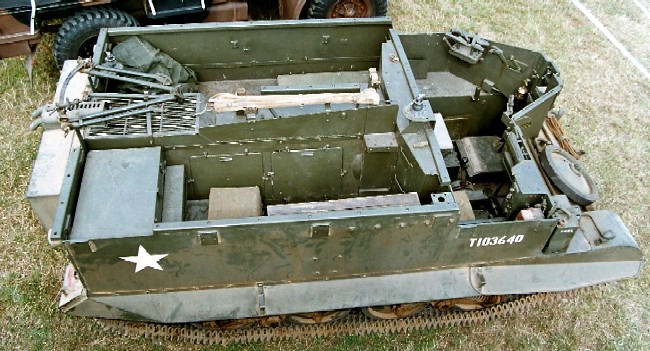

Top view.
